September, 1953

John Deere Service Bulletins

No. 207

SPECIAL SERVICE TOOLS FOR MODEL "40" TRACTORS

We now have available the following newly designed special service tools to provide for easier servicing of Model "40" Series Tractors. Used in conjunction with Model "M" Series Service Tools, which are also applicable in most cases to the "40" Series, these tools will help to insure precision workmanship in rebuilding tractors to factory specifications.

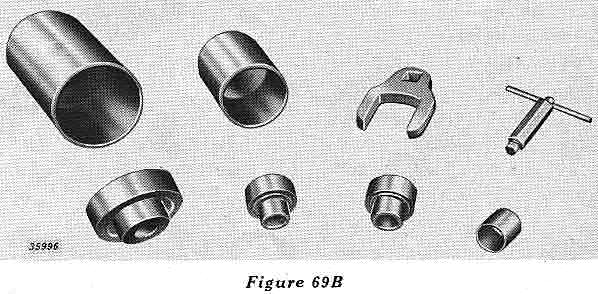

Figure 69B

Tool No.

Tool

Application

Model

"40" Series Service Manual Illustration






M 2271 T

Driver

For Installation of AM 1842 T Final Drive Shaft Oil Seal

40

..........

M 2272 T

Driver

For Installation of AM409T Touch-o-matic Pump Needle Bearing

40
40-C
40-S

180-20-9

M 2273 T

Driver

For Installation of M1806T Touch-o-matic Pump Needle Bearing

40
40-C
40-S

180-20-9

M 2274 T

Driver

For Installation of M2107T Rockshaft Oil Seal and M1880T Retainer

40
40-S

180-10-49

M 2275 T

Sleeve

For Protection of M1866T O-Ring when Installing M1868T Touch-o-matic Pump Drive Shaft

40
40-C
40-S

180-20-11

M 2276 T

Wrench

For Installation and Removal of 14H488T Fan Shaft Nut

40
40-C
40-S

40-5-10

AM 2047 T

Driver

For Installation of M2108T Rockshaft Oil Seal and M1886T Retainer

40

180-10-49

AM 2048 T

Wrench

For Setting M521T Pressure Relief Valve Adjusting Screw and Tightening M1832T Lock Screw

40
40-S

180-10-44
